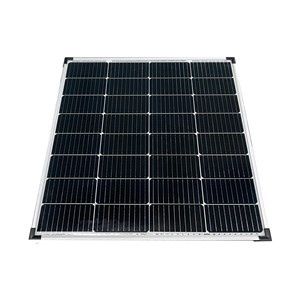

SOLAR PANEL 12V 130WATT MONO FIXED 790 X 770MM (Instore only)

This high quality panel has much higher efficiency and power output compared to our previous models allowing the same power output in a more compact size. This is great for areas where you are limited for space and need as much power as you can get! Providing excellent performance under low light environments, they produce 2-3% more power and have a higher kWh/kW ratio compared to older monocrystalline designs. The durable anodised aluminium frame holds the tempered glass panel which features an anti-reflective and self-cleaning glass surface to reduce power loss from dirt and dust. The junction box and bypass diodes stop the panel from overheating and suffering from the “hot spot effect”. PV connectors on a 900mm lead make them easy to install. A fantastic panel with minimal ongoing maintenance and compatible with industry-standard inverters and mounting systems.



25 year limited warranty

All Powertech monocrystalline solar panels are covered by a 25 year limited warranty. This warranty covers the panels for defects in construction and manufacturing for a period of 5 years, and warrants that the electrical output will remain above 80% of its original rated output for a period of 25 years.

Specifications

DC Voltage : 12V

Length : 790mm

Width : 770mm

Depth : 35mm

Cable length : 0.9m

Packaged Volume : 83.59l

Packaged Weight : 8.38kg

Packaged Length : 88.88cm

Packaged Width : 85.5cm

Packaged Height : 11cm

Solar panel type : Monocrystalline

Cover Material : tempered glass

Open Circuit Voltage : 21.5V

Short Circuit Current : 7.75A

Voltage at Power Max : 18V

Current at Power Max : 7.22A

Power Connector : 4mm PV Connector (MC4 Style)
