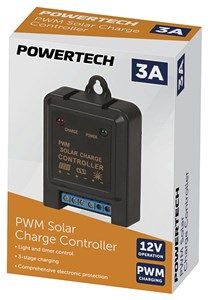

3A PWM Solar Charge Controller 12V Was $30 Now$15
Share
$15.00
4 payments of $3.75 with
Price incl. GST (10%) $1.36
In stock: 2 available
1
Product details
Brand: Powertech
POWERTECH
This compact solar controller uses Pulse Width Modulation (PWM) to manage battery charging from a connected solar panel. It features light and timer control, similar to street lights, and three charging states (bulk, equalise, and float charging). It provides all the important safety features such as overcharge, over-discharge, over-current, short-circuit, and reverse-polarity protection.
Features:
Features:
- Red charge LED indicator
- Green power LED indicator
- Hang hook
- Battery voltage automatic identification
- PWM charging mode
- Comprehensive electronic protection
Specifications:
Specifications:
Rated Voltage: 12V
Strong Charging Pressure: 14.8V
Equilibrium Charging: 14.5V
Float Charging Pressure: 13.7V
Under Voltage: 10.8V
Under Recover Voltage: 13V
Non–Load Current: ≤6mA
Charging Circuit Voltage drop: ≤0.2V
Discharge Circuit Voltage drop: ≤0.1V
Specifications
| Packaged Volume : 0.15l |
| Packaged Weight : 0.05kg |
| Packaged Length : 8.5cm |
| Packaged Width : 6cm |
| Packaged Height : 3cm |
| Width : 52mm |
| Height : 22mm |
| Depth : 80mm |
| Weight : 33g |
| Dust/Particle Ingress Protection : 2 - Objects > 12.5mm, Fingers or small objects |
| Liquid/Moisture Ingress Protection : 2 - Dripping water when tilted to 15deg |
| IP Rating : 22 |
| DC Voltage : 12V |
| Max Charging Current : 3A |
| Max Load Current : 3A |
| Charge Controller Technology : Pulse Width Modulated (PWM) |
